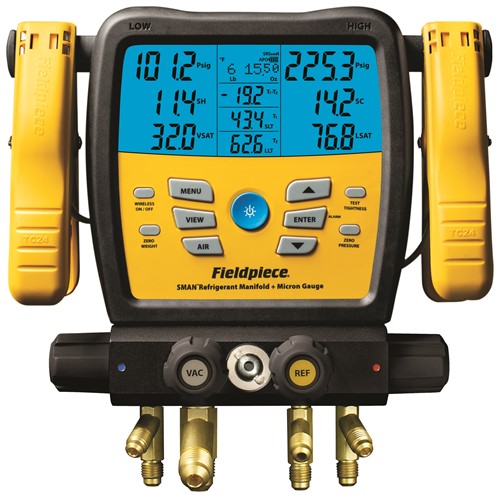

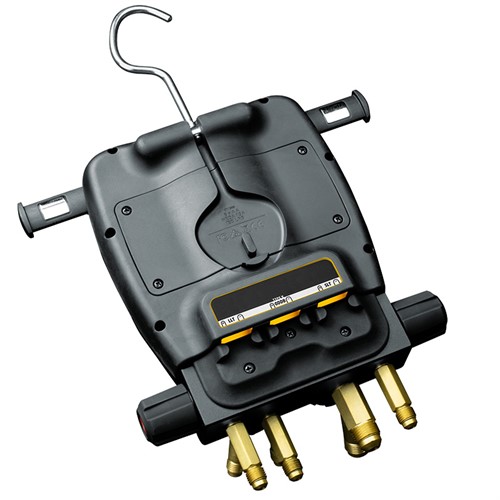

Professional digital manifold from Fieldpiece, designed for service, installation, and troubleshooting of HVAC and heat pump systems. The SM480VINT combines a robust design with advanced features such as wireless measurements, data logging, and temperature-compensated tightness testing—making work faster, more accurate, and more efficient.
The instrument is optimized for modern refrigerants and is well suited for systems using R32 and R410A. It is compatible with A1 and A2L refrigerants, meeting the requirements of today’s HVAC installations.
Applications
- Service and troubleshooting of HVAC and heat pump systems
- Installation and commissioning of AC and refrigeration systems
- Measurement of high/low pressure, superheat, and subcooling
- Leak testing after installation or repair
- Data logging and system performance documentation
Key Features
- 4-port digital manifold with high accuracy
- Wireless connectivity via Fieldpiece Job Link® system
- Supports modern refrigerants such as R32 and R410A
- A2L compatible (low-GWP refrigerants)
- Built-in vacuum measurement
- Temperature-compensated tightness test
- Data logging up to approx. 168 hours
- Durable construction (IP54 rated)
Job Link® – smarter measurements and documentation
The SM480VINT acts as a central hub within the Fieldpiece Job Link® system, wirelessly connecting to multiple tools such as pressure probes, temperature clamps, and scales. All measurements are displayed in real time directly on the manifold or in the Job Link® mobile app.
This provides clear advantages in daily work:
- Real-time system data without cables
- Remote monitoring with optimally placed sensors
- Easy documentation directly in the mobile app
- Professional reports that can be shared with customers
- Faster diagnostics and reduced need for return visits
With a wireless range of up to approx. 300 meters, the entire system can be monitored from a single device.
Registration & App
To access full functionality, the instrument should be registered with Fieldpiece and used together with the Job Link® app. This provides:
- Firmware updates
- Full access to Job Link® features
- Ability to save, export, and share measurement data
- Access to support and product resources
Technical Specifications
- Type: Digital manifold (4-port)
- Refrigerants: A1 and A2L (e.g. R32, R410A)
- Data logging: up to 7 days (168 hours)
- Wireless range: up to approx. 300 m
- Battery: 6 × AA (up to approx. 350 hours)
- Protection rating: IP54
- Connections: 3 × 1/4” SAE, 1 × 3/8” vacuum port
Included in delivery
- SM480VINT digital manifold
- 2 × pipe clamp thermocouples (Type-K)
- 1 × temperature probe (Type-K)
- Protective carrying case
