Applications

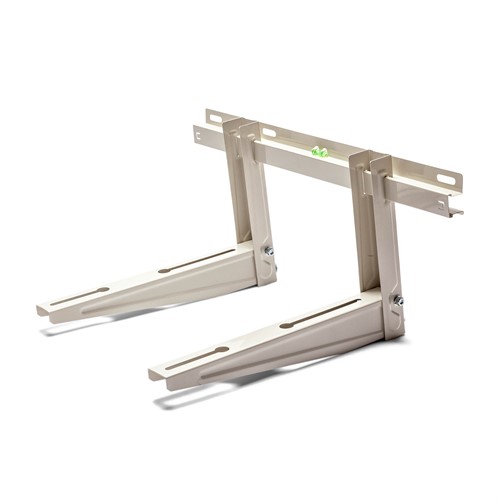

QsanTec HBF-450 is an adjustable wall bracket for outdoor units of heat pumps and air conditioning systems. It is particularly suitable for air-to-air heat pumps whose weight and mounting dimensions fall within the bracket’s technical specifications.
The arms can be positioned along the wall rail to suit the width of the outdoor unit. The integrated spirit level helps when mounting the rail horizontally.
Features and functions
- Adjustable arm positions allow the bracket to fit different outdoor units.
- An integrated spirit level helps with horizontal installation of the wall rail.
- Adjustment screws behind the arms allow their position against the wall to be fine-tuned.
- Mounting points on the arms allow suitable vibration dampers to be fitted.
- Electro-galvanised and powder-coated steel construction for outdoor installation.
- The rail allows the distance between the arms to be adjusted to the outdoor unit’s mounting dimensions.
Technical data
- Model: HBF-450
- Brand: QsanTec
- Type: Adjustable wall bracket with rail
- Colour: White, RAL 9002
- Rail width: 700 mm
- Arm depth: 450 mm
- Height: 300 mm
- Mounting hole spacing, width: 200–600 mm
- Mounting hole spacing, depth: 150–360 mm
- Material thickness: 1.3 mm
- Maximum load: 80 kg, evenly distributed between both arms
- Finish: Electro-galvanised and powder-coated
- Wall plug diameter: 14 mm
Installation
Check the outdoor unit’s weight and mounting dimensions, and ensure that the wall can support the load. Mount the wall rail horizontally using fixings suitable for the wall material. Position the arms to match the outdoor unit’s mounting points and use the adjustment screws to level the bracket. Check that all fixings are secure before mounting the outdoor unit.
Important information
- Vibration dampers are not included and should be selected separately to suit the outdoor unit and installation.
